Construction site and temporary transformer substation 250 to 1000 kVA
Where it is used and how it is built
Applications
- general contractors and developers
- substation and generator rental companies
- construction of plants, halls and farms
- backup supply during substation modernisation
Design
- Loop-through arrangement: two line panels for looping into an MV cable line and a transformer panel with HH fuses.
- LV semi-indirect metering in the LV switchboard for lower ratings, subject to DSO approval; MV metering panel for higher ratings.
- Compact enclosure 2.90 x 2.10 m up to 630 kVA; with two line panels and a metering panel, a widened 2.96 m enclosure; for large construction sites 1000 kVA in an enclosure with an operating corridor.
- LV switchboard with NH outgoing feeders for site distribution boards and spare panels for subsequent construction phases; future rating option when the substation is to remain as the permanent substation.
Advantages
- Compact monoblock with base: quick placement on a bedding layer, no foundation with basement.
- Your own substation instead of renting: relocatable after construction or kept as the permanent substation.
- Repeatable configurations with a single code and a complete set of documents for each application.
- LV metering for low ratings is simpler to build and to bill.
Limitations
- Lead time of 18 weeks: a construction site substation must be ordered in advance.
- Each relocation requires a crane, disconnection by qualified electricians and a new DSO approval.
- LV metering usually only for 160 to 400 kVA transformers, depending on the DSO.
Typical configurations and substation codes
| Rating | Substation code | Enclosure | Enclosure weight | MV panels | Metering | LV main device | LV outgoing feeders |
|---|---|---|---|---|---|---|---|
| 250 kVA | ENG-B250-15S-LLT-04 ready set | KSZ 2.90 x 2.10 m | approx. 9.6 t | L+L+T, HH 25 A | LV, 400/5 A | switch-disconnector 630 A | 4 x NH2 400 A |
| 400 kVA | ENG-B400-15S-LLT-04 ready set | KSZ 2.90 x 2.10 m | approx. 9.6 t | L+L+T, HH 31.5 A | LV, 600/5 A | switch-disconnector 800 A | 4 x NH2 400 A |
| 630 kVA | ENG-B630-15S-LLPT-06 | KSWz 2.96 x 3.76 m | approx. 24 t | L+L+P+T, HH 40 A | MV, 25/5 A | switch-disconnector 1250 A | 6 x NH2 400 A |
| 630 kVA | ENG-B630-15S-LPT-06 ready set | KSZ 2.90 x 2.10 m | approx. 9.6 t | L+P+T, HH 40 A | MV, 25/5 A | switch-disconnector 1250 A | 6 x NH2 400 A |
| 1000 kVA | ENG-B1000-15S-LPV-08-K ready set | KSW 2.96 x 4.56 m | approx. 28 t | L+P+V, circuit breaker | MV, 40/5 A | air circuit breaker 1600 A, Icu min. 24 kA | 8 x NH2 400 A |
Values from the Energeks station configurator for a 15 kV network and MV switchgear with solid and air insulation. Enclosure weights are indicative, without equipment and transformer. Click a code to open the configuration in the configurator.

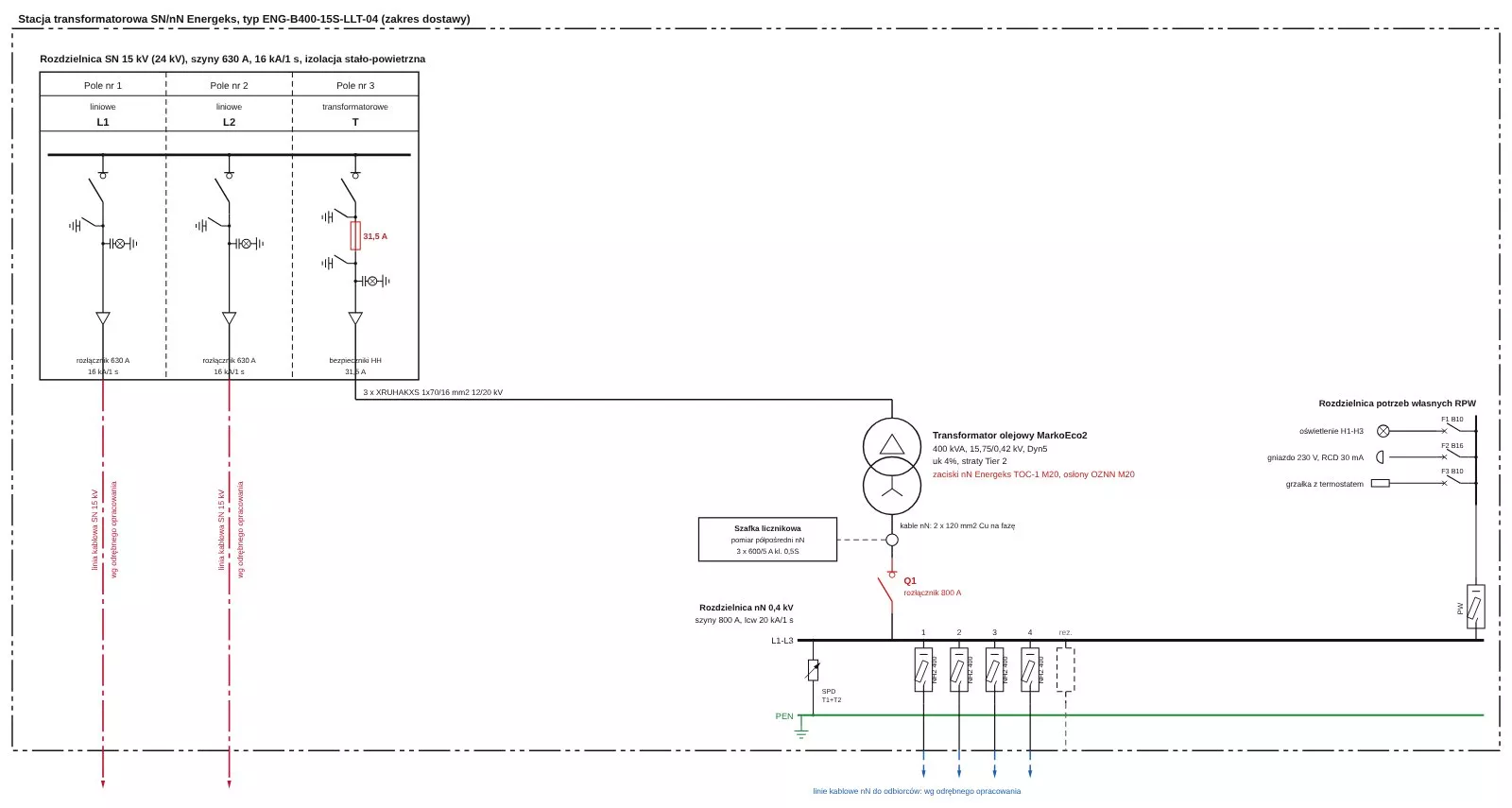

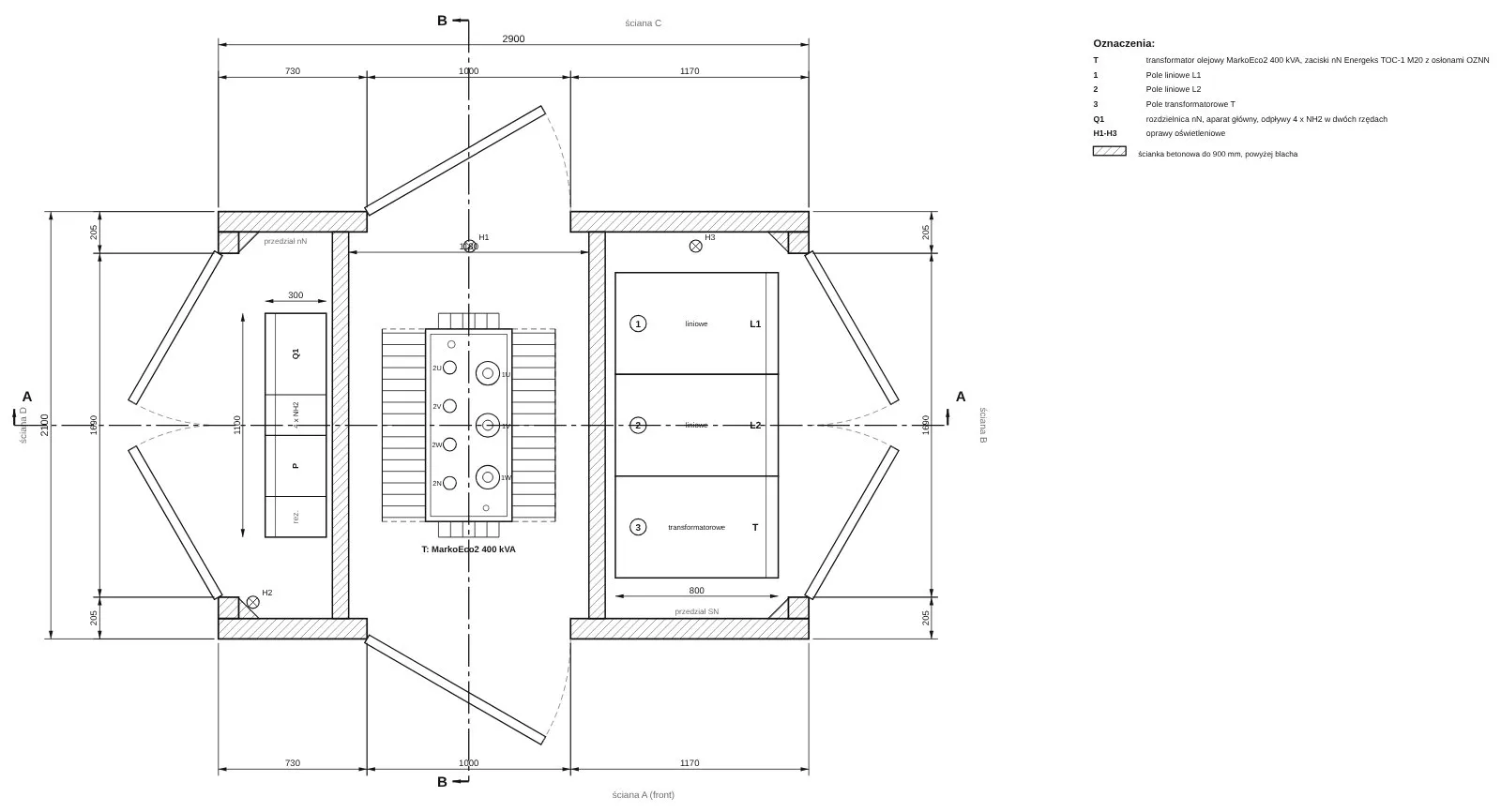

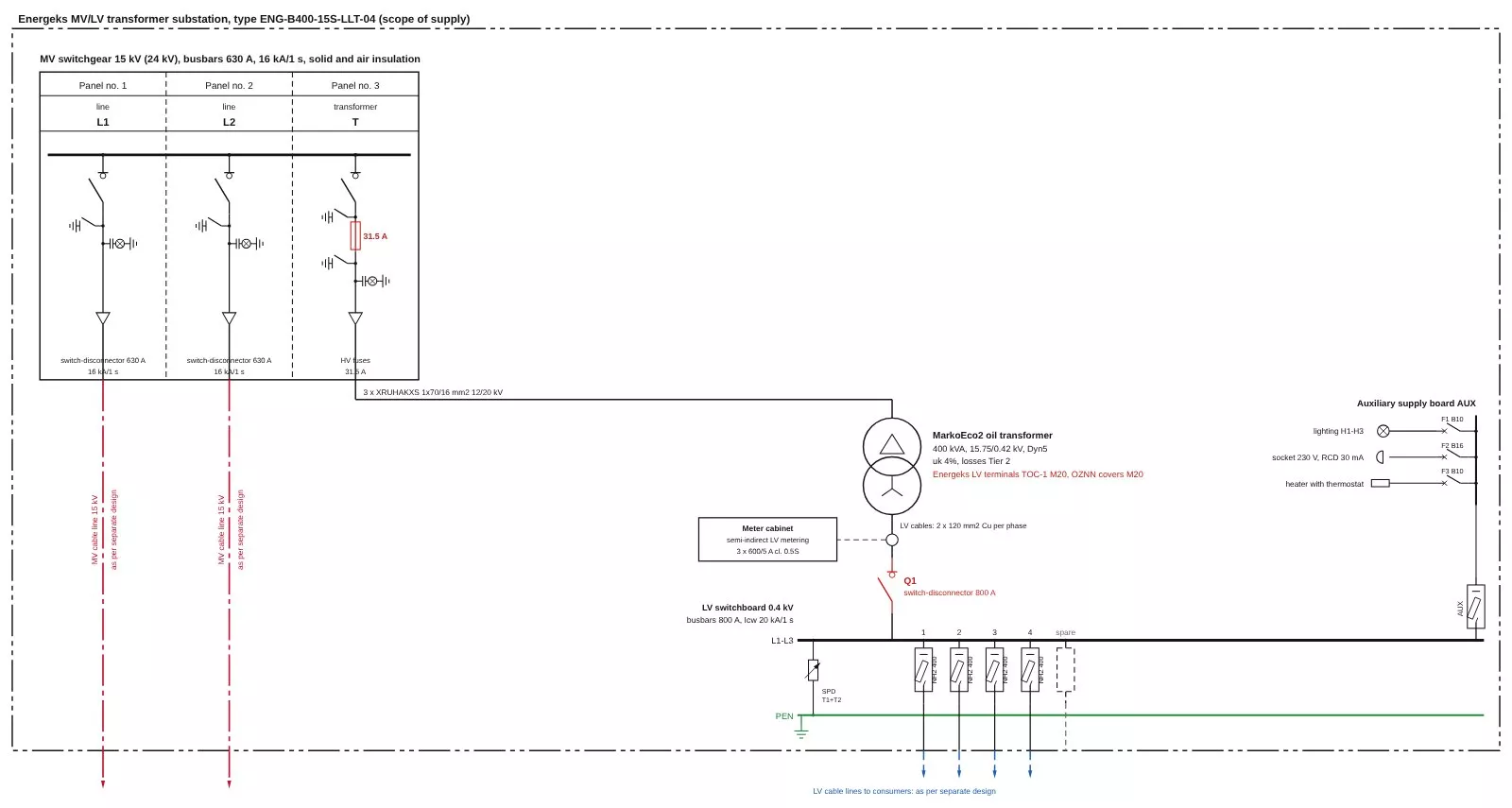

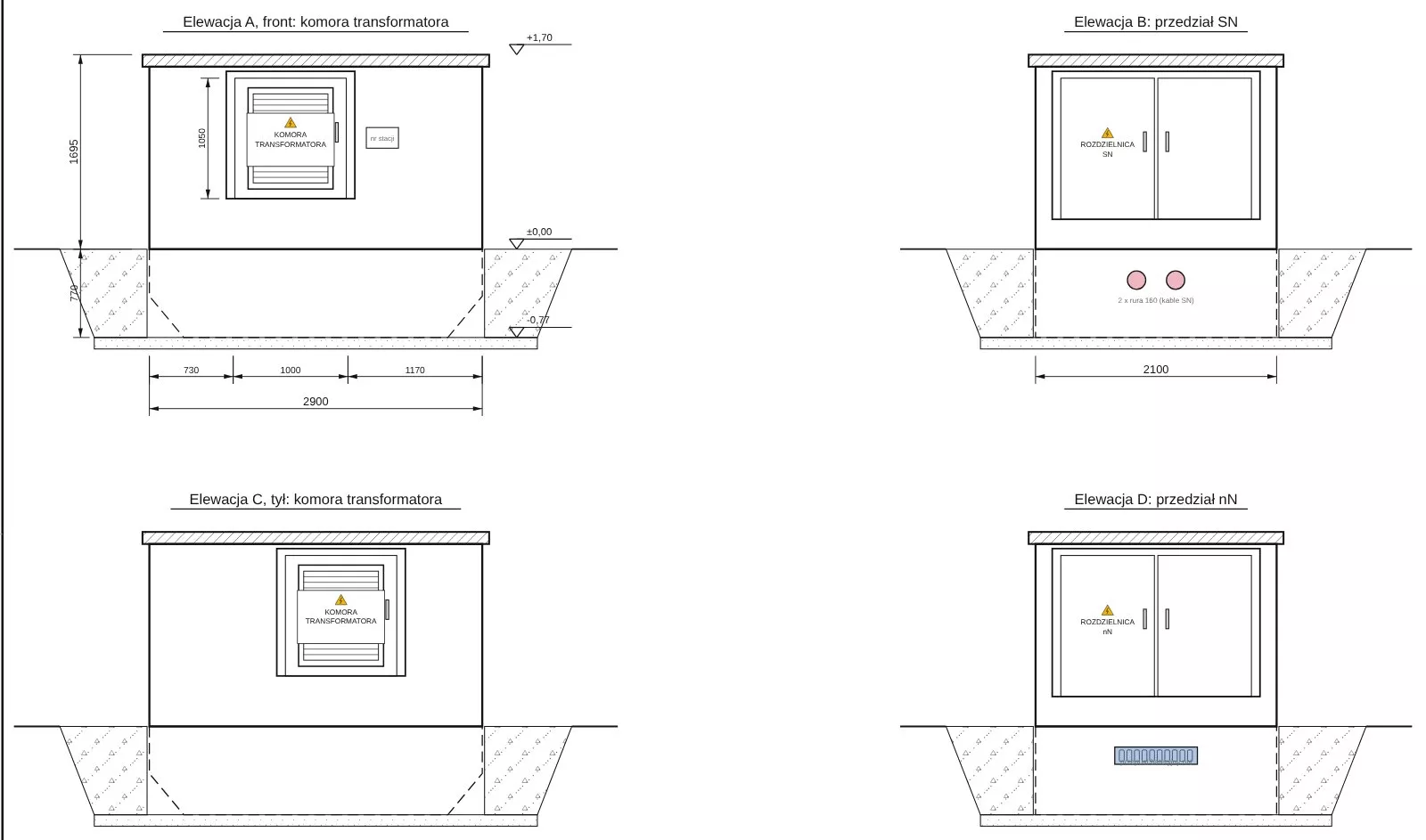

Plan, elevations and single-line diagram
Drawings of a sample configuration from the station configurator. The full drawing set for any configuration can be downloaded in the configurator without registration (in Polish).
Clamps and covers on the transformer

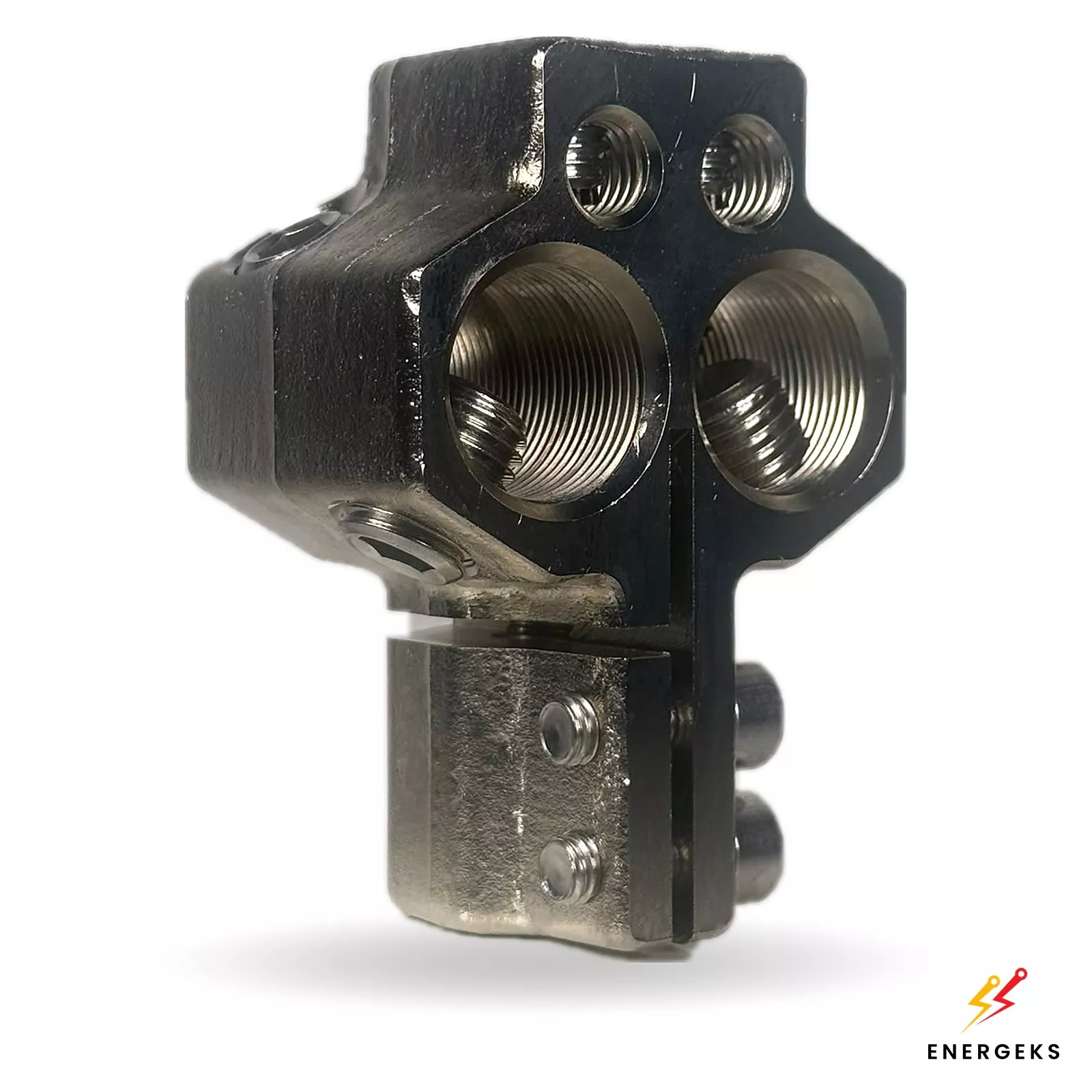

TOC-1 LV clamps
Standard in substations up to 630 kVA: horizontal, lugless, set of 3 x /U and 1 x /N; M12, M20 or M30 selected to suit the rating.
View product
OZNN covers
4 insulating covers for LV clamps made of flexible self-extinguishing plastic, fitted after the cables are connected.
View productFrom substation code to quotation
Choose a type
A substation type or a ready set with a configuration that recurs most often in projects.
Adjust in the configurator
Rating, voltage, MV panels, metering, feeders and options; each configuration gets a substation code.
Download documents
Technical design, data sheet, single-line diagram, drawings and bill of materials, no login.
Request a quote
Send the substation code, location and date. Price on request.
One supplier for substation and transformer
SF6-free MV switchgear
Solid and air insulation, air insulation or a gas with GWP below 1. In line with EU Regulation 2024/573.
MarkoEco2 transformer
Hermetically sealed oil-immersed, losses to Ecodesign Tier 2, 60-month warranty. Cast resin TeoEco2 on request.
Documentation at once
Technical design for adaptation by your designer, data sheet, drawings and bill of materials from the configurator, no registration.
18 weeks with transport
Standard lead time of 18 weeks from order, transport to the site specified by the customer.
