Transformer substations
Pole-mounted transformer substation 63 to 400 kVA

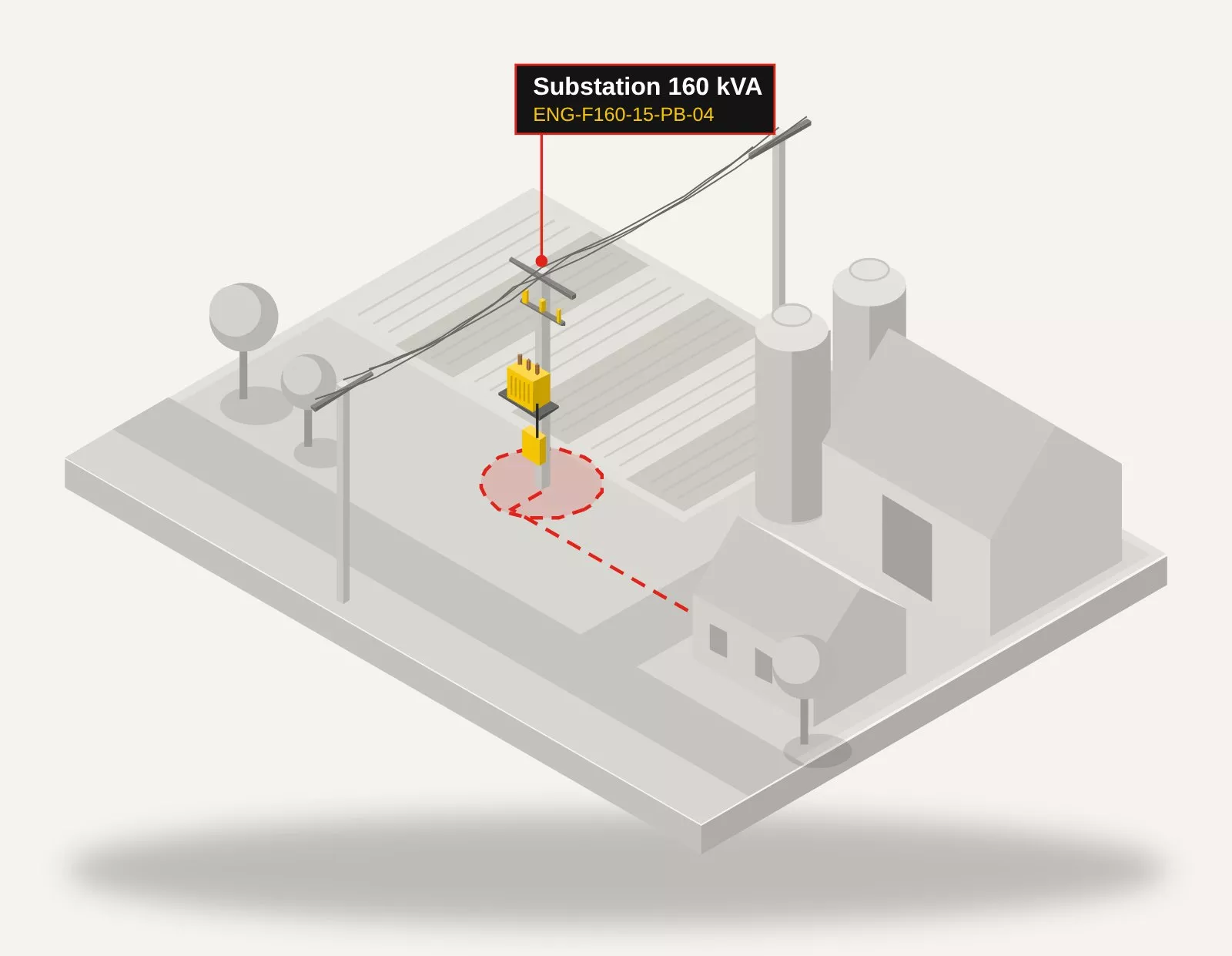

Where it is used and how it is built
Applications
- farms and livestock holdings
- small plants, workshops and pumping stations
- water intakes and lighting
- rural single-family housing
Design
- Spun concrete pole E-12 or E-13.5 with transformer support structure, optional operating platform; structure and fittings to the PTPiREE album or to the standard of the DSO at the connection point.
- Overhead switch-disconnector with operating mechanism (continuous current min. 200 A), gapless MV surge arresters 10 kA, MV fuse bases with fuse links matched to the rating.
- LV cabinet in an insulating enclosure: fuse switch-disconnector with gTr fuse links matched to the transformer rating, 2 to 5 outgoing feeders (up to 6 panels including spares), LV semi-indirect metering, type 1+2 surge arresters.
- Energeks transformer accessories: TOC-1 LV clamps with OZNN covers, 3 ZGU MV clamps and 3 OIP bird protection covers for MV insulators.
Advantages
- The simplest low-power connection: no concrete enclosure and no foundation.
- Minimal ground space, mounting on an existing overhead line.
- Components matched to the rating and the DSO standard, delivered as a single kit with documentation.
Limitations
- Rating up to 400 kVA; only next to an MV overhead line.
- Metering on the LV side only; no REI 120, telecontrol, generator panel, network analyser or future rating.
- Pole mounting, earth electrode and connection by the contractor.
Typical configurations and substation codes
| Rating | Substation code | Enclosure | Enclosure weight | MV panels | Metering | LV main device | LV outgoing feeders |
|---|---|---|---|---|---|---|---|
| 63 kVA | ENG-F63-15-PB-04-N00 | pole E-12 or E-13.5 | n/a | WBGNp 6.3 A | LV, 100/5 A | fuse switch-disconnector, gTr 63 kVA | 4 x NH00 160 A |
| 100 kVA | ENG-F100-15-PB-04-N00 ready set | pole E-12 or E-13.5 | n/a | WBGNp 10 A | LV, 150/5 A | fuse switch-disconnector, gTr 100 kVA | 4 x NH00 160 A |
| 160 kVA | ENG-F160-15-PB-04 ready set | pole E-12 or E-13.5 | n/a | WBGNp 16 A | LV, 250/5 A | fuse switch-disconnector, gTr 160 kVA | 4 x NH1 250 A |
| 250 kVA | ENG-F250-15-PB-04 ready set | pole E-12 or E-13.5 | n/a | WBGNp 25 A | LV, 400/5 A | fuse switch-disconnector, gTr 250 kVA | 4 x NH1 250 A |
| 400 kVA | ENG-F400-15-PB-04 | pole E-12 or E-13.5 | n/a | WBGNp 31.5 A | LV, 600/5 A | fuse switch-disconnector, gTr 400 kVA | 4 x NH1 250 A |
Values from the Energeks station configurator for a 15 kV network and MV switchgear with solid and air insulation. Enclosure weights are indicative, without equipment and transformer. Click a code to open the configuration in the configurator.

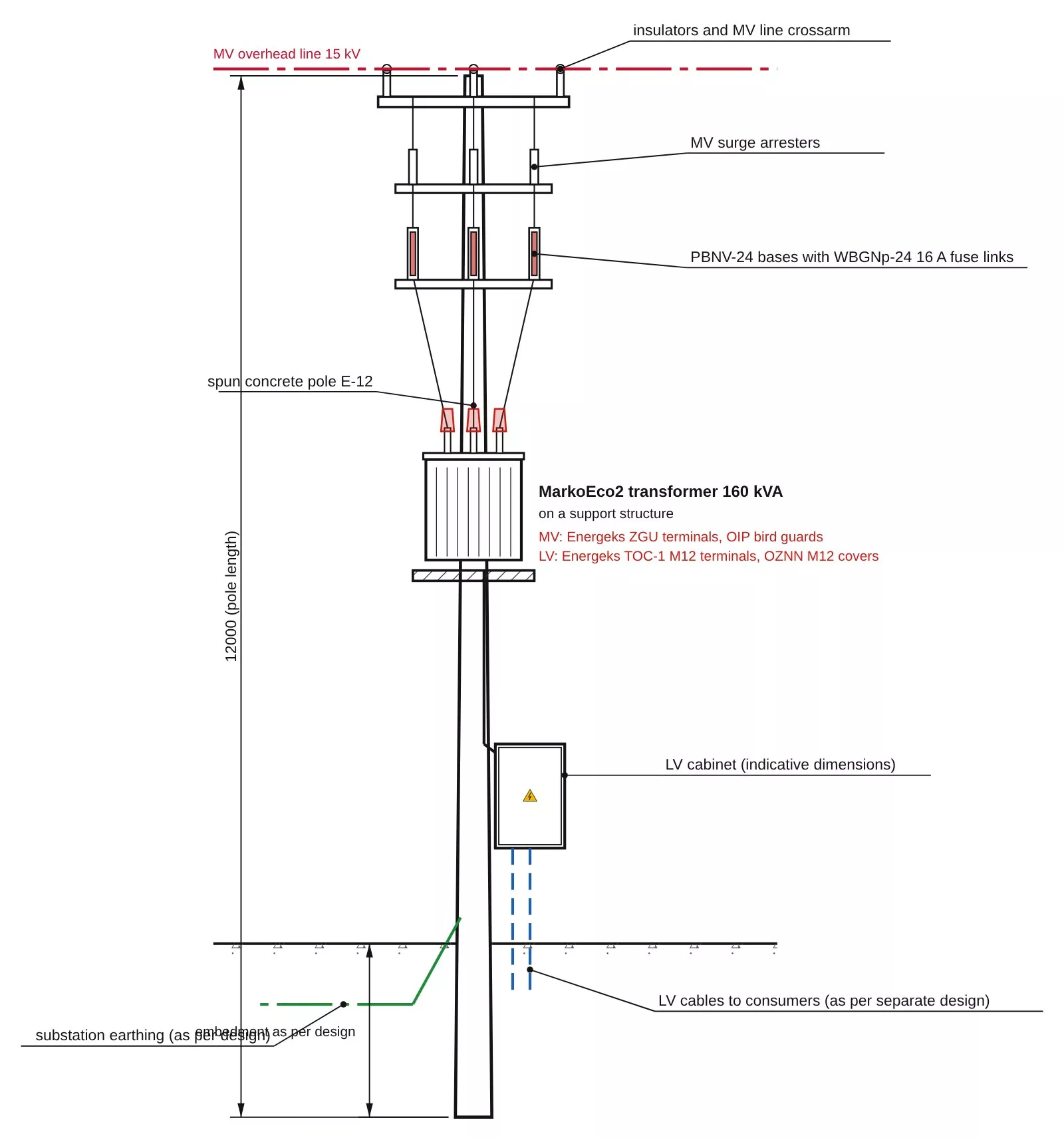

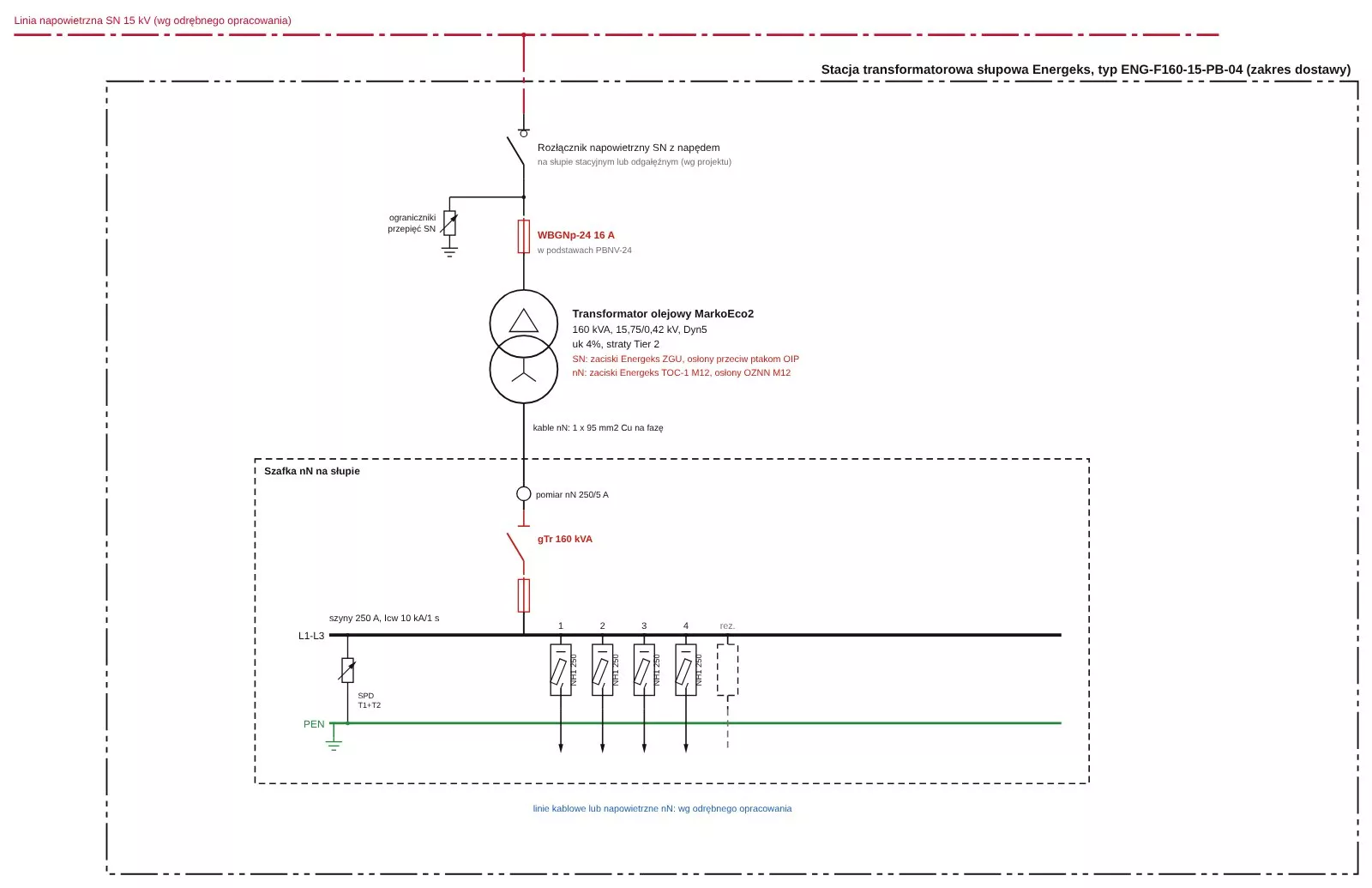

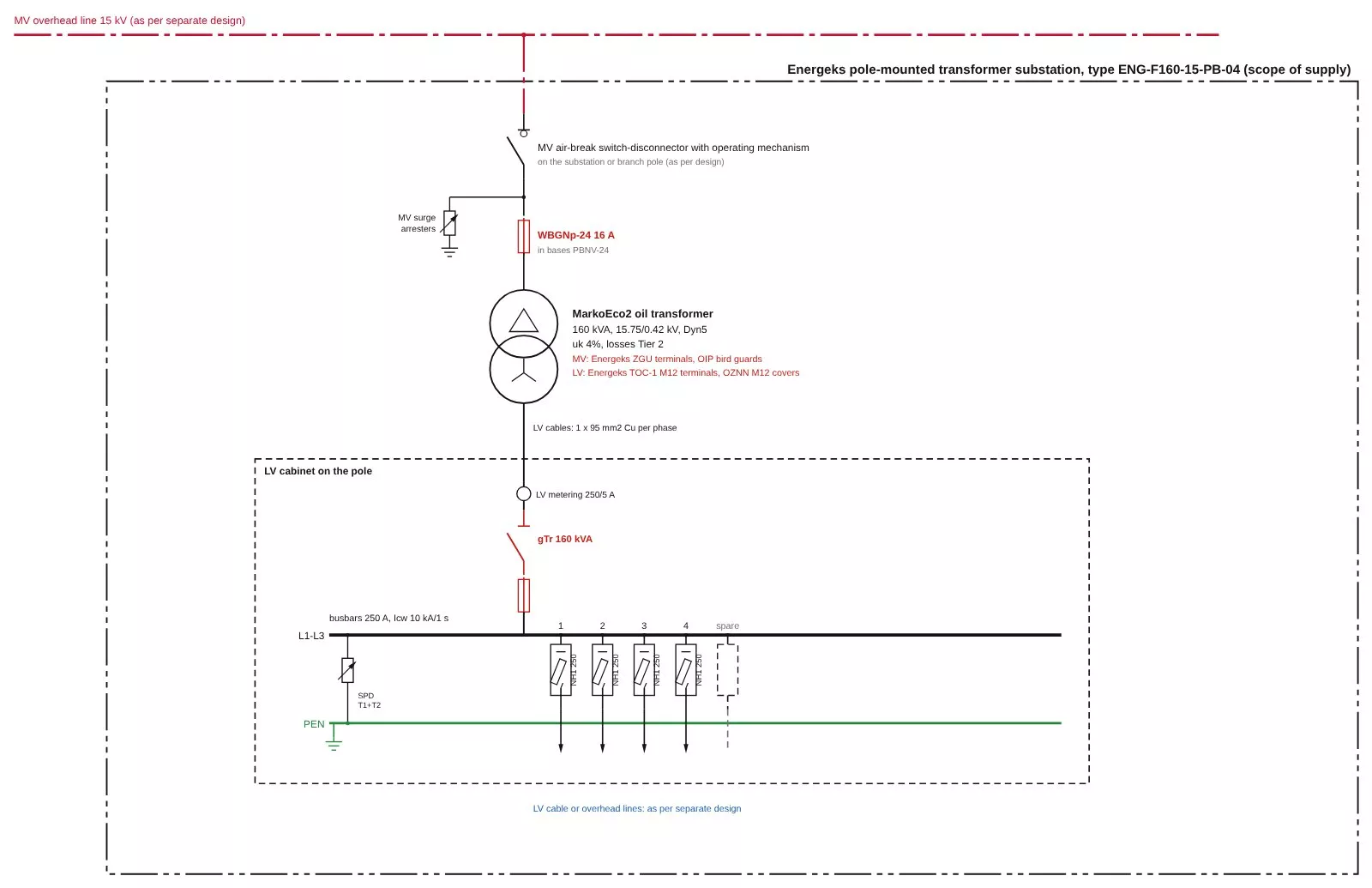

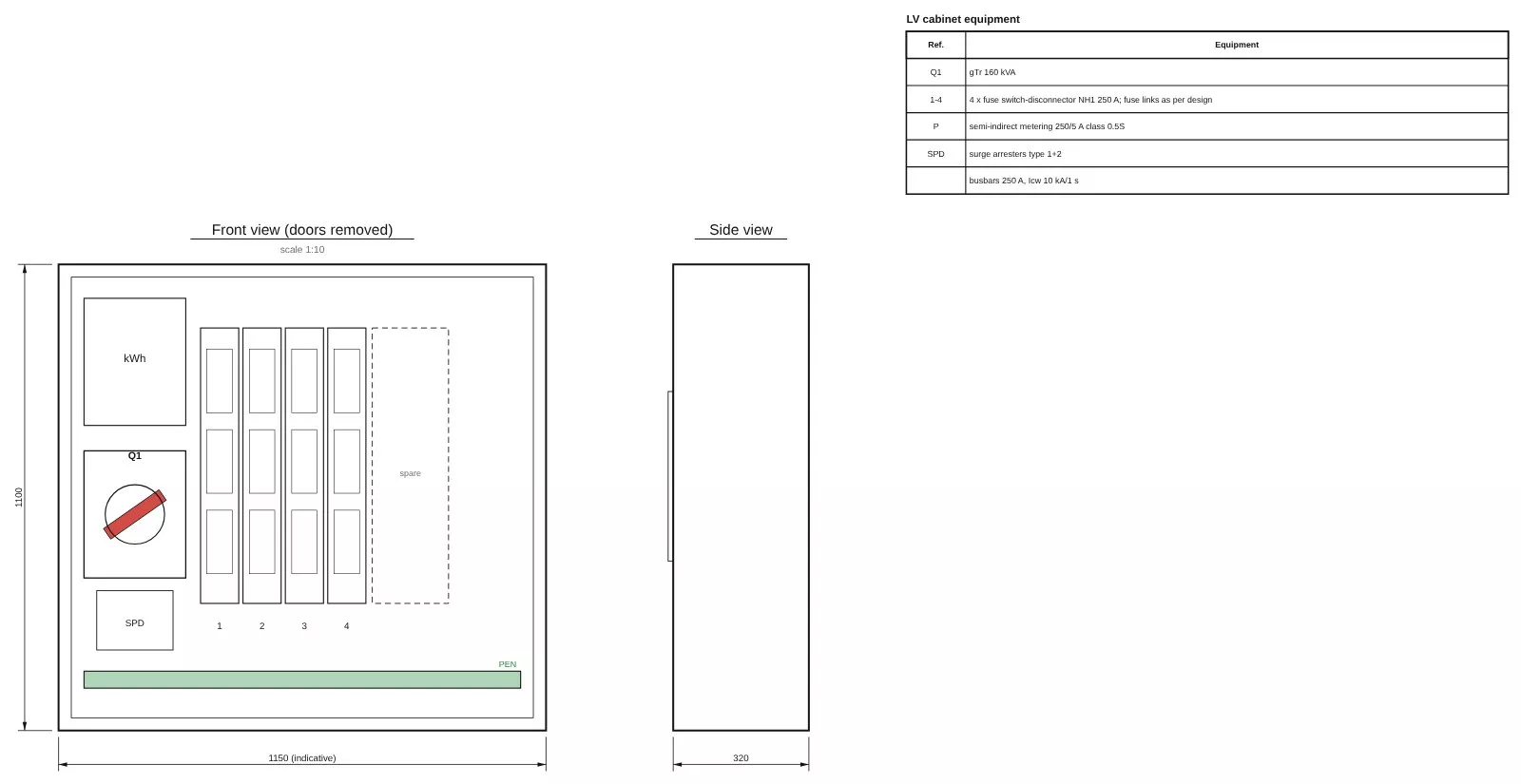

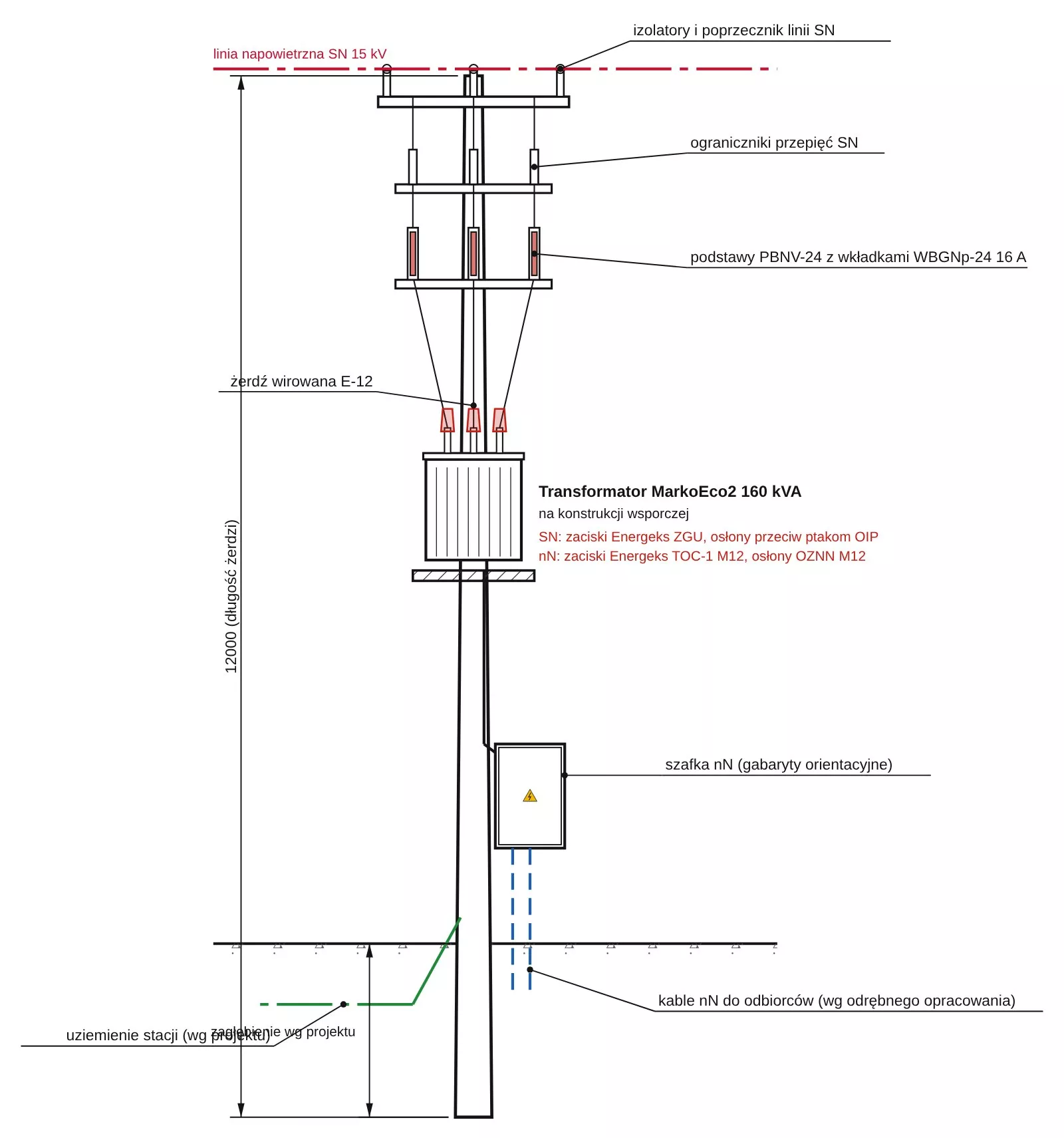

Plan, elevations and single-line diagram
Drawings of a sample configuration from the station configurator. The full drawing set for any configuration can be downloaded in the configurator without registration (in Polish).
Clamps and covers on the transformer
TOC-1 LV clamps
Standard in substations up to 630 kVA: horizontal, lugless, set of 3 x /U and 1 x /N; M12, M20 or M30 selected to suit the rating.
View product
OZNN covers
4 insulating covers for LV clamps made of flexible self-extinguishing plastic, fitted after the cables are connected.
View productZGU MV clamps and OIP covers
3 MV clamps for transformer bushings (M12 stud, conductor up to 70 mm²) and 3 bird protection covers for MV insulators.
From substation code to quotation
Choose a type
A substation type or a ready set with a configuration that recurs most often in projects.
Adjust in the configurator
Rating, voltage, MV panels, metering, feeders and options; each configuration gets a substation code.
Download documents
Technical design, data sheet, single-line diagram, drawings and bill of materials, no login.
Request a quote
Send the substation code, location and date. Price on request.
One supplier for substation and transformer
SF6-free MV switchgear
Solid and air insulation, air insulation or a gas with GWP below 1. In line with EU Regulation 2024/573.
MarkoEco2 transformer
Hermetically sealed oil-immersed, losses to Ecodesign Tier 2, 60-month warranty. Cast resin TeoEco2 on request.
Documentation at once
Technical design for adaptation by your designer, data sheet, drawings and bill of materials from the configurator, no registration.
18 weeks with transport
Standard lead time of 18 weeks from order, transport to the site specified by the customer.
