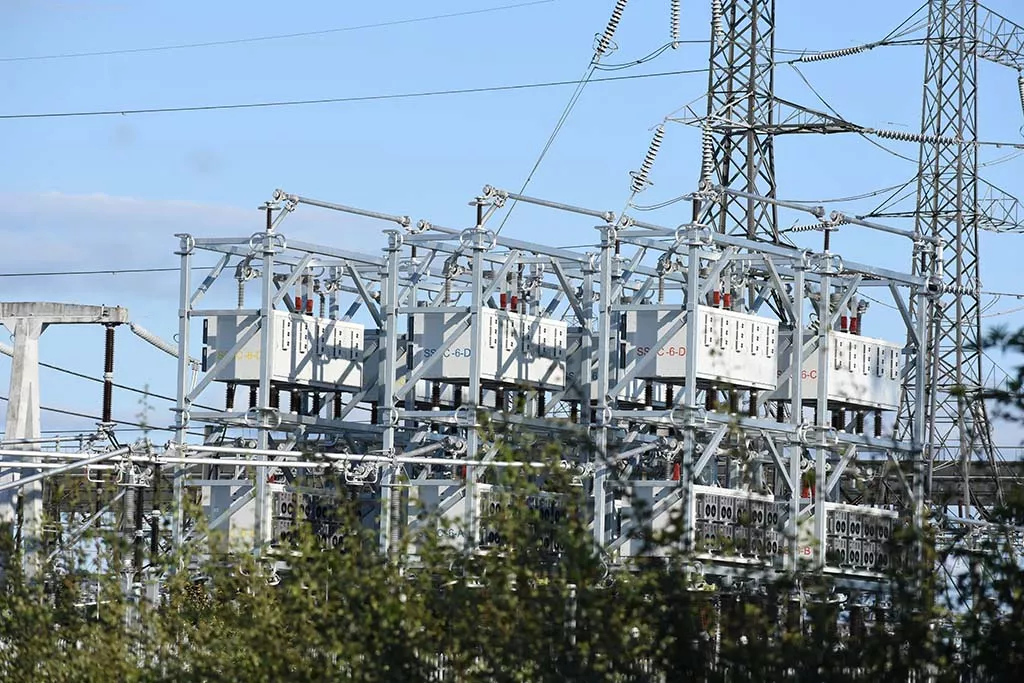

transformers-installation-photo-by-Andrew-Hall

4 Mar

2025

Energeks

Power transformer installation - a comprehensive checklist

At Energeks, we have been offering electrical energy solutions that meet the highest quality and safety standards for many years. We know that the correct installation of a transformer is not only about complying with standards, but also about the precise execution of every single step - from acceptance to commissioning and monitoring of the unit's operation. Even the smallest error in installation can lead to failures, downtime and costly repairs. That is why we have created this guide - a comprehensive checklist to ensure that the transformer installation goes smoothly and that its long-term, efficient operation is guarnteed.

The process begins with a thorough transport check and proper storage of the equipment. Then it is important to prepare a stable and well-ventilated foundation to ensure the transformer's longevity. The next steps involve accurate installation, correct electrical connection and careful checking of all connections. Before commissioning, it is essential to check the insulation and operation of the cooling system to ensure that the transformer is ready for use. Finally, there is the initial start-up and monitoring phase, which allows any anomalies to be detected before full load.

Read more about this in today's article!

Reading time: 3 min


Reception and Storage

The first step in the transformer installation process is a thorough technical inspection upon delivery. Every transportation process carries the risk of mechanical damage or improper handling, which can compromise the transformer's integrity. Therefore, conducting a detailed inspection before installation is essential. Even minor defects, such as microcracks in insulators or deformations in the housing, can lead to operational issues, increased risk of short circuits, or reduced efficiency of the transformer.

Nameplate Verification

Every transformer should be inspected for compliance with the purchase documentation. The nameplate contains critical technical information about the transformer, which must match the electrical network and system requirements in which it will operate.

Key aspects to verify:

  • Primary and secondary voltage – must be aligned with the installation requirements.

  • Rated power – an incorrect power rating can lead to overheating.

  • Operating frequency – typically 50 Hz or 60 Hz, depending on the country.

  • Insulation class and voltage levels – particularly crucial in high-humidity or high-dust environments.

  • Serial number and manufacturer markings – to verify the device’s history and any potential technical updates.

If any discrepancies are found in these parameters, they should be immediately reported to the supplier before proceeding with further installation steps.

Visual Inspection

A thorough visual check is necessary to detect any potential damage that may have occurred during transport or storage.

During the inspection, verify:

  • Housing condition – check for dents, cracks, or signs of corrosion.

  • Insulators and terminals – ensure they are not damaged, contaminated, or overheated.

  • Wiring and accessories – confirm that all connections are secure and no elements are loose.

  • Oil leaks – in oil-filled transformers, inspect the tank for leaks and confirm the oil level is within the correct range.

  • Cooling covers and fans – verify that they are properly mounted and do not obstruct airflow.

Any detected irregularities should be documented and reported to the manufacturer or supplier before proceeding with the installation process.

Storage

If the transformer is not installed immediately after delivery, proper storage conditions must be maintained to prevent deterioration of its technical parameters.

Key storage guidelines:

  • Storage location – must be dry, well-ventilated, and protected from moisture, dust, and significant temperature fluctuations.

  • Positioning – the transformer should be stored in its operational position to avoid winding deformation and uneven oil distribution in oil-filled units.

  • Protection against vibrations – excessive vibrations can loosen connections or cause microcracks in the core structure.

  • Corrosion protection – in high-humidity environments, apply protective covers, vacuum packing, or anti-corrosion agents.

  • Storage environment control – avoid placing the transformer in areas exposed to rodents or insects, which could damage wire insulation.

Proper reception and storage of a transformer are critical to ensuring its reliability and longevity. Any negligence in these areas may result in operational issues that become apparent only after commissioning. That is why careful inspection at the time of delivery and ensuring appropriate storage conditions are essential for trouble-free operation in the long run.


Foundation Preparation

A transformer, especially a high-power unit, generates significant mechanical and dynamic loads. Proper foundation preparation is crucial for stability, safety, and long-term durability. An improperly designed or constructed foundation can lead to undesired structural stress, vibrations, and cooling issues, which in turn may shorten the lifespan of the unit or cause failures during operation.

Proper Load-Bearing Capacity

The foundation must be designed and built to support the weight of the transformer, as well as additional equipment such as cooling systems, protective enclosures, and safety devices.

Key considerations:

  • Load capacity – the foundation must accommodate the transformer’s weight while also absorbing dynamic loads generated during operation. Consulting a structural engineer is advisable to prevent settling or cracks in the foundation.

  • Material selection – high-strength concrete (e.g., C30/37 or higher) is recommended to withstand both static and dynamic loads effectively.

  • Structural reinforcements – for larger transformers, steel reinforcements should be incorporated to improve resistance to mechanical stress.

An insufficiently robust foundation can lead to microcracks that, over time, may cause severe damage to both the foundation and the transformer itself.

Precise Leveling

Ensuring a perfectly level foundation is a critical factor in maintaining transformer stability. Even minor deviations can result in:

  • Increased mechanical stress on the core and windings,

  • Cooling inefficiencies – incorrect positioning can affect air or oil circulation,

  • Challenges in mounting auxiliary equipment, such as oil cooling radiators, which require precise positioning.

Key leveling measures include:

  • Using adjustment pads to fine-tune the transformer’s alignment after placement,

  • Checking horizontal alignment with laser or electronic measurement devices,

  • Maintaining adequate clearance from neighboring structures, ensuring sufficient space for safe installation and servicing.

For prefabricated foundations, additional checks should be performed to confirm their geometry and integrity, ensuring that no deformations occurred during transportation or installation.

Ventilation Considerations

A transformer, particularly a dry-type unit, requires proper airflow to efficiently dissipate heat generated during operation. Inadequate air circulation can lead to overheating of windings and insulation, reducing efficiency and increasing the risk of failure.

To ensure optimal ventilation:

  • Maintain proper clearances from walls and other equipment, following manufacturer guidelines,

  • Include ventilation grilles or foundation openings to allow free airflow beneath the transformer,

  • For transformers in enclosed spaces, implement a forced ventilation system to effectively dissipate heat.

Additionally, for oil-filled transformers, sufficient space must be allocated for radiators and cooling units to prevent overheating and unnecessary thermal losses.

A well-constructed foundation is more than just a structural support – it directly affects transformer safety, performance, and longevity. Proper execution at this stage helps prevent operational issues that could arise months or even years after commissioning.

Every phase – from material selection and precise leveling to ensuring adequate ventilation – plays a fundamental role in transformer stability and long-term reliability.


Transformer Installation

The proper installation of a transformer requires precise execution of each stage in accordance with the manufacturer’s guidelines. A transformer is a heavy and complex device, meaning that any installation errors can result in malfunction, excessive heating, or even failure. It is crucial to safely transport the unit to its designated location and ensure secure mounting and proper installation of additional equipment.

Safe Lifting and Transportation

Moving a transformer from storage to its foundation requires the use of appropriate handling equipment, such as cranes, hoists, or heavy-duty transport carts, all selected according to the unit’s weight and dimensions. Each transformer is equipped with dedicated lifting points, which must be used exclusively during the lifting process.

Important considerations for transport:

  • Never lift the transformer by any components other than the designated lifting points – lifting it by windings or protective covers is strictly prohibited.

  • All crane or hoist movements should be smooth and controlled to prevent excessive mechanical stress on the unit.

  • The transformer should always be transported in its operational position to prevent internal component damage.

  • Vibrations during transport must be minimized, especially for dry-type transformers, as even slight core displacements can impact performance.

If the transformer is being transported over long distances, it is essential to implement shock absorption measures to protect it from micro-damage caused by vibrations and impacts. Proper handling at this stage ensures mechanical integrity and optimal performance once the transformer is installed.


Electrical Connection

The correct electrical connection of a transformer is a critical stage of installation that determines its safety and efficiency. Improper connections can lead to excessive power losses, overheating of windings, damage to insulation, and even system failures. Each electrical component must be carefully inspected and compliant with technical documentation to ensure the proper operation of the unit.

Winding Connection

Before connecting the transformer, it is essential to verify that its winding configuration aligns with the electrical system’s schematic and requirements.

Key steps in the connection process:

  • Identification of primary and secondary windings – the primary winding must be connected to the power supply, while the secondary winding is linked to electrical loads.

  • Verification of winding configurations – transformers can be configured in star (Y), delta (D), or with phase shifting, depending on the application. It is crucial to ensure that the selected configuration matches the network specifications.

  • Proper terminal identification – the transformer’s input terminals (H1, H2, H3) and output terminals (X1, X2, X3) should be clearly labeled and correctly connected. Incorrect wiring can alter the phase sequence, causing malfunctions in connected equipment.

  • Secure connection tightening – winding terminals must be properly tightened to maintain low contact resistance, preventing sparking, excessive heating, and insulation degradation.

Proper Grounding

Grounding is a fundamental safety requirement that protects both the transformer and the entire installation. A properly grounded transformer effectively dissipates fault currents and prevents overvoltages.

Key grounding principles:

  • Grounding of the transformer tank – in oil-filled transformers, the tank must be properly grounded to eliminate dangerous potential differences on its surface.

  • Grounding of the magnetic core – in large transformers, additional core grounding is recommended to prevent stray currents that could lead to localized heating and degradation.

  • Neutral point grounding – in star (Y) configurations, the neutral point must be securely grounded to maintain voltage stability and limit system overvoltages.

  • Ground resistance verification – before commissioning, it is essential to measure the ground resistance. The resistance value should comply with industry standards (typically below 1 Ω) to ensure efficient fault current dissipation.

Improper grounding can lead to serious risks, including electric shock hazards, operational disruptions in electrical devices, and insulation failure due to excessive overvoltages.

Short-Circuit Voltage Verification

Before energizing the transformer, it is necessary to confirm that its electrical parameters align with the operational voltage of the system.

Key aspects to verify:

  • Nominal winding voltage – the primary and secondary voltages must match network specifications.

  • Rated current – check whether the transformer’s operational current falls within permissible limits for the installation.

  • Short-circuit voltage (Uk%) – transformers have a specified short-circuit voltage, which determines their ability to limit short-circuit currents. If this value is too low, short-circuit currents may reach dangerously high levels.

  • Winding resistance and insulation condition – performing resistance and insulation measurements helps detect potential faults that could cause operational failures after startup.

A correctly executed electrical connection ensures the safe and reliable operation of the transformer, reducing the risk of failures and extending its lifespan.


Pre-Commissioning Tests

Before a transformer is energized for the first time, a series of diagnostic tests must be conducted to assess its technical condition and eliminate potential risks. These tests are essential to confirm compliance with safety standards and ensure that the transformer's operating parameters align with design specifications. Skipping this stage can result in early failures or even immediate damage upon initial startup.

Insulation Resistance Measurement

One of the fundamental pre-commissioning tests is the measurement of winding insulation resistance. Electrical insulation plays a critical role in ensuring the safe and reliable operation of the transformer, making it essential to verify its condition before applying voltage.

How is the measurement performed?

  • A megohmmeter (insulation tester) applies DC voltage and measures the insulation resistance of the windings.

  • The measurement is conducted between:

    • The primary and secondary windings,

    • Windings and ground,

    • Windings and the transformer tank (for oil-filled units).

  • Acceptable insulation resistance values depend on the transformer's rated voltage, but for medium-voltage transformers, values above 1000 MΩ are generally expected.

  • Lower-than-standard values may indicate contaminated insulation, moisture ingress, or mechanical damage.

For larger transformers, an insulation absorption ratio test is also performed, evaluating insulation quality over time. This test measures the ratio of insulation resistance at 1 minute to its initial value, helping detect dielectric degradation.

Cooling System Verification

Efficient cooling is critical for the safe operation of a transformer. Overheating of windings can cause insulation degradation, increased power losses, and reduced lifespan.

What should be chcked?

  1. Condition of fans and radiators

    • In dry-type transformers, ensure that fans are operating correctly and are free from blockages that could restrict airflow.

    • In oil-filled transformers, check the condition of radiators, verifying that there are no oil leaks.

  2. Oil level and quality (for oil-filled transformers)

    • Confirm that the oil level is within the operational range specified by the manufacturer.

    • Conduct oil analysis, including moisture content and dissolved gas analysis (DGA), to detect insulation degradation or early signs of internal faults.

  3. Thermal protection systems

    • Temperature sensors (e.g., PT100, PTC thermistors) and thermal relays must be functional and correctly configured.

    • Verify that the temperature rise of windings and the core remains within acceptable limits under test load conditions.

  4. Airflow and ventilation

    • For indoor dry-type transformers, confirm that air circulation is adequate and that ventilation openings are not obstructed.

    • In forced-air cooling systems, check proper fan operation and control system responsiveness.

Documentation and Reports

Before the transformer is officially commissioned, detailed test documentation must be prepared as a prerequisite for energization.

A comprehensive test report should include:

  • Insulation resistance test results – compared with catalog values and standard requirements.

  • Cooling system evaluation – documenting fan performance, oil levels, and thermal protection functionality.

  • Short-circuit voltage and winding resistance measurements – verifying winding condition and compliance with manufacturer specifications.

  • Mechanical inspection of the transformer – assessing the condition of insulators, terminals, and protective covers.

Once all tests have been completed successfully, the transformer can be energized and monitored during its initial operational phase. Pre-commissioning tests are critical for ensuring the long-term reliability of the transformer while preventing costly failures and unplanned outages in the power grid.


Initial Energization and Monitoring

The final stage of transformer installation is its initial energization and performance monitoring. Even if the installation was performed according to specifications, the first hours of operation are crucial for detecting any irregularities. Any deviations from standard parameters, such as unexpected heating, unusual noises, or voltage fluctuations, may indicate underlying issues that could lead to future failures.

Gradual Load Increase

A transformer should be energized gradually, allowing its operating parameters to stabilize safely and avoiding sudden overloads. Applying full load immediately can cause a rapid temperature rise, mechanical stress, and excessive strain, particularly if the unit has been out of service for an extended period.

Recommended step-by-step energization process:

  1. Initial energization without load – applying voltage to the primary winding without connected loads allows for insulation condition verification and open-circuit voltage measurement.

  2. Gradual load increase – load should be increased incrementally, for example, in steps of 25%, 50%, 75%, and 100% of rated power, while continuously monitoring electrical and thermal parameters.

  3. Observation of transformer behavior – during this process, special attention should be given to:

    • Operating noise level (excessive humming may indicate loose core laminations),

    • Vibrations and oscillations,

    • Stability of secondary voltage and load currents,

    • Signs of overheating in terminal connections.

  4. Verification of secondary voltages – measure voltage under load conditions and confirm compliance with expected values.

Any irregularities detected at this stage should be immediately analyzed and corrected before reaching full operational load.

Winding and Core Temperature Monitoring

During operation, a transformer generates heat, which must be effectively dissipated. Overheating of windings is one of the primary factors contributing to insulation aging and reduced lifespan, making continuous temperature monitoring essential.

Critical aspects of temperature control:

  • Winding temperature measurementstemperature sensors (e.g., PT100, PTC thermistors) should be installed at key transformer locations and connected to a monitoring system.

  • Core temperature observation – sudden temperature spikes may indicate local conductivity issues or a malfunctioning cooling system.

  • Cooling system response – check whether fans or oil pumps activate as expected and function within specified parameters.

Temperature values should be compared with the manufacturer’s reference dataany exceedance of acceptable limits should prompt immediate diagnostics and corrective measures.

Long-Term Monitoring

The long-term reliability of a transformer depends on continuous monitoring of its operational parameters. Modern monitoring systems, such as SCADA (Supervisory Control and Data Acquisition) and IoT (Internet of Things)-based solutions, enable predictive diagnostics, helping to prevent failures before they occur.

Key parameters that should be continuously monitored:

  • Winding and core temperatures – detects cooling issues, overheating risks, and insulation degradation.

  • Winding currents and voltages – analyzing their stability helps identify voltage asymmetries, overloads, or sudden fluctuations, which may indicate network disturbances.

  • Humidity and oil condition (for oil-filled transformers) – detects moisture contamination of the insulation and dissolved gases, which may indicate early degradation processes.

  • Noise and vibration levels – abnormal vibrations may signal loose connections, core structural changes, or mounting issues.

By implementing an advanced monitoring system, operators can analyze transformer parameters in real-time, allowing them to:

  • React quickly to abnormal conditions,

  • Minimize the risk of failures,

  • Optimize maintenance schedules,

  • Extend equipment lifespan and reduce operational costs.

Post-Energization Assessment

Following the initial startup, it is recommended to prepare a performance report, which should include:

  • Voltage, current, and temperature readings at different load stages,

  • Cooling system performance and its stability,

  • Vibration and acoustic test results,

  • Evaluation of protection devices and monitoring systems.

Only after a successful assessment of all parameters can the transformer be deemed ready for full-scale operation under normal conditions. A robust monitoring system ensures real-time tracking of equipment status, enabling preventive maintenance and failure avoidance before major issues arise.

The first hours of transformer operation are crucial – precise monitoring at this stage prevents future issues and guarantees long-term performance.


Comprehensive Approach to Transformer Installation – Safety, Efficiency, Reliability

Transformer installation is much more than just connecting wires. It is a process that requires precision, compliance with standards, and in-depth knowledge of industry best practices. Every stage – from reception and storage, through foundation preparation, assembly, and testing, to commissioning and monitoring – directly impacts the safety and longevity of the equipment.

A well-executed installation not only minimizes the risk of failures but also optimizes operational costs. A properly prepared and supervised transformer operates efficiently for years, avoiding unexpected downtimes and losses resulting from improper installation.

At Energeks, we go beyond just delivering transformers – we offer comprehensive END-TO-END support at every stage of the project. From needs analysis and selecting the right solution to logistics, assembly, testing, commissioning, and monitoring – we are your trusted partner throughout the entire lifecycle of your equipment.

And if time is crucial, we have transformers available immediately! Visit our online store and choose a ready-to-ship solution tailored to your needs. Also, join our community of power engineering experts and enthusiasts on LinkedIn – we share not only the latest technological insights but also practical knowledge and solutions that improve the work of engineers and businesses. Together, we are shaping the future of the industry!

Rely on experience and reliabilitycontact us and carry out your transformer installation with Energeks, without compromises.
